模仿Tablayout效果

<The rest of contents | 余下全文>

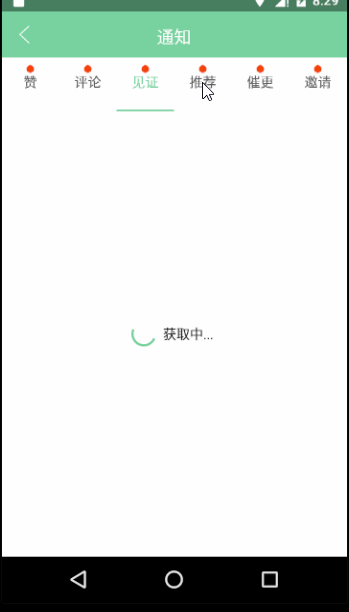

项目需要用到这个效果.

谷歌提供了一种方案Tablayout(兼容包)的组件，可以非常方便的实现这个效果.

苛刻的产品，要求文字与红点距离必须为0,文字距离底部的线距离必须是14dp.

那么问题就来了.谷歌原生的上下距离是相等的，内部的TextView是居中显示的.而且我们又控制不了.

没办法，只有自己完全写一个了.直接来看代码吧.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
package com.qingxiang.ui.view;

import android.content.Context;
import android.support.v4.view.PagerAdapter;
import android.support.v4.view.ViewPager;
import android.util.AttributeSet;
import android.util.TypedValue;
import android.view.Gravity;
import android.view.View;
import android.view.ViewGroup;
import android.widget.FrameLayout;
import android.widget.LinearLayout;
import android.widget.TextView;

import com.qingxiang.ui.R;
import com.qingxiang.ui.utils.DensityUtils;
import com.qingxiang.ui.utils.Utils;

/**
 * 顶部滑动注入组件
 */
public class TabInject extends FrameLayout implements ViewPager.OnPageChangeListener {

    private static final String TAG = "TabInject";
    private LinearLayout continar;
    private PagerAdapter mAdapter;
    private View line;
    private int curPage;
    private ViewPager mViewPager;
    private TextView lastSelectChild;
    private int lineWidth;

    public TabInject(Context context) {
        this(context, null);
    }

    public TabInject(Context context, AttributeSet attrs) {
        this(context, attrs, 0);
    }

    public TabInject(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init();
    }

    private void init() {
		//创建顶部textview的容器
        continar = new LinearLayout(getContext());
        addView(continar, new ViewGroup.LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT,
                ViewGroup.LayoutParams.MATCH_PARENT));
    }

    public void setAdapter(ViewPager vp, PagerAdapter adapter) {
        mAdapter = adapter;
        mViewPager = vp;
        curPage = mViewPager.getCurrentItem();
        int count = mAdapter.getCount();
		//根据屏幕宽度与头部count来计算底部指示线的宽度
        lineWidth = Utils.getScreenWidth() / count;
        int lineHeight = DensityUtils.dp2px(getContext(), 2);

        line = new View(getContext());
        line.setBackgroundColor(getResources().getColor(R.color.colorPrimary));
        FrameLayout.LayoutParams lineParams
                = new FrameLayout.LayoutParams(lineWidth, lineHeight);
        lineParams.gravity = Gravity.BOTTOM;
        addView(line, lineParams);

        //给顶部增加TextView
        for (int i = 0; i < count; i++) {
            TextView tv = new TextView(getContext());
            LinearLayout.LayoutParams
                    params = new LinearLayout.LayoutParams(0, LinearLayout.LayoutParams.MATCH_PARENT);
            params.weight = 1;
            tv.setGravity(Gravity.TOP | Gravity.CENTER_HORIZONTAL);
            tv.setText(mAdapter.getPageTitle(i));

            if (curPage == i) {
                tv.setTextColor(getResources().getColor(R.color.colorPrimary));
                lastSelectChild = tv;
            } else
                tv.setTextColor(getResources().getColor(R.color.middleDark));

            tv.setBackgroundColor(getResources().getColor(R.color.alpha));
            tv.setTextSize(TypedValue.COMPLEX_UNIT_SP, 14);

            final int finalI = i;
            tv.setOnClickListener(v -> {
                mViewPager.setCurrentItem(finalI);
            });
            continar.addView(tv, params);
        }
        mViewPager.addOnPageChangeListener(this);
    }

    @Override
    protected void onDetachedFromWindow() {
        super.onDetachedFromWindow();
        mViewPager.removeOnPageChangeListener(this);
    }

    @Override
    public void onPageScrolled(int pos, float off, int offPx) {
		//通过用户移动的offset值修改指示线的leftMargin.达到移动指示线的目的
        int moveX = (int) (lineWidth * off);
        LayoutParams layoutParams = (LayoutParams) line.getLayoutParams();
        layoutParams.leftMargin = (pos * lineWidth) + moveX;

        int dX = layoutParams.leftMargin - (pos * lineWidth);

        if (dX > 0 && dX <= 1) {
            layoutParams.leftMargin = (pos * lineWidth);
        }

        if (dX < lineWidth && dX >= (lineWidth - 1)) {
            layoutParams.leftMargin = (pos + 1) * lineWidth;
        }

        line.setLayoutParams(layoutParams);
    }

    @Override
    public void onPageSelected(int position) {
        /**
         * 更改之后修正被选择标签的文字颜色
         */
        TextView tv = (TextView) continar.getChildAt(position);
        lastSelectChild.setTextColor(getResources().getColor(R.color.middleDark));
        tv.setTextColor(getResources().getColor(R.color.colorPrimary));

		//即便不是滑动移动ViewPager，也会触发onPageScrolled方法，所以这里的动画移动就没必要做了
        /*{//移动底部的指示线
            //首先获取现在线的位置
            int lineFromX = curPage * lineWidth;
            //获取将要到达的位置
            int lineToX = position * lineWidth;
            FrameLayout.LayoutParams layoutParams = (LayoutParams) line.getLayoutParams();

            if (Math.abs(lineToX - layoutParams.leftMargin) < DensityUtils.dp2px(getContext(), 5)) {
                layoutParams.leftMargin = lineToX;
                TranslateAnimation translate =
                        new TranslateAnimation(
                                TranslateAnimation.RELATIVE_TO_SELF, 0,
                                TranslateAnimation.RELATIVE_TO_SELF, position - curPage,
                                TranslateAnimation.RELATIVE_TO_SELF, 0,
                                TranslateAnimation.RELATIVE_TO_SELF, 0
                        );
                translate.setDuration(200);
                translate.setFillAfter(true);
                translate.setAnimationListener(new AnimationListener() {
                    @Override
                    public void onAnimationEnd(Animation animation) {
                        line.setLayoutParams(layoutParams);
                        line.clearAnimation();
                    }
                });
                line.startAnimation(translate);
            } else {
                layoutParams.leftMargin = lineToX;
                line.setLayoutParams(layoutParams);
            }
        }*/

        lastSelectChild = tv;
        curPage = position;
    }

    @Override
    public void onPageScrollStateChanged(int state) {

    }
}
